Tech; Pg 2 Ramairbox Install (with KnN FIPK) Go to Pg 1 of install
|
These instructions may not pertain to your Ram but they may be helpful as a guide for what to expect. |

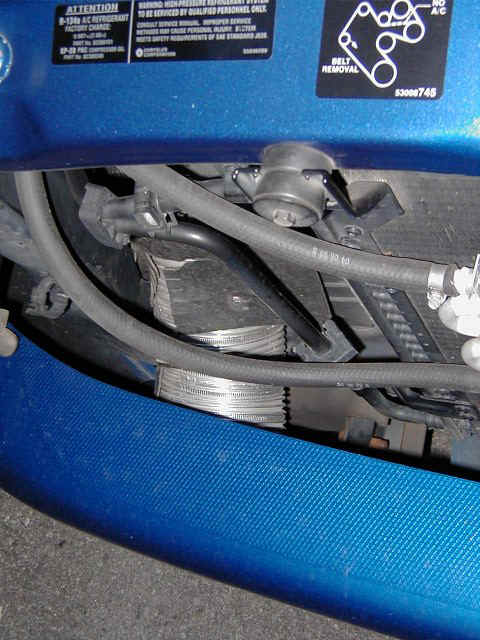

Pull the rubber filler off the tabs at the bottom on both sides of the rad

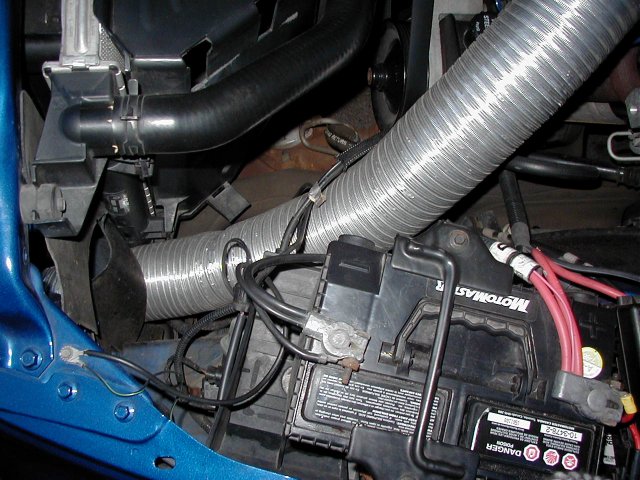

Passenger side

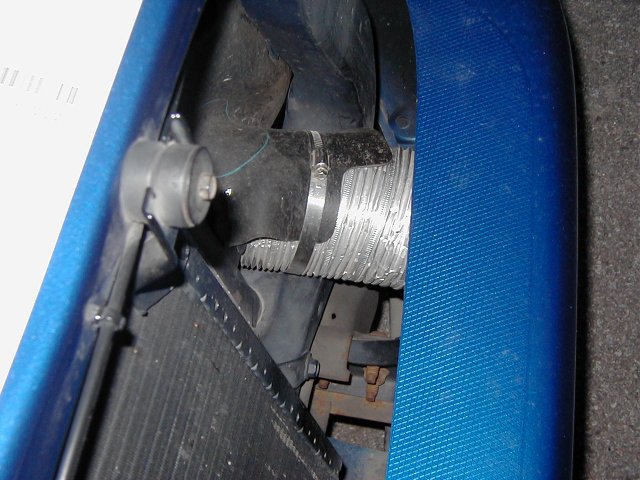

The tab holding the filler on the rad at bottom had to be cut off to pass the duct threw

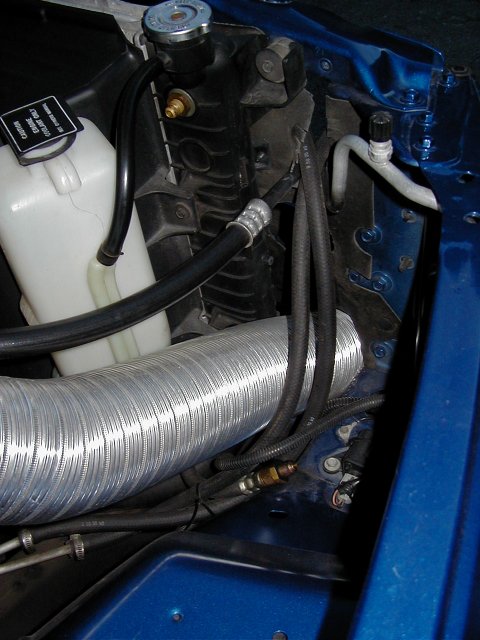

Large clamps wrapped around filler and duct held things well

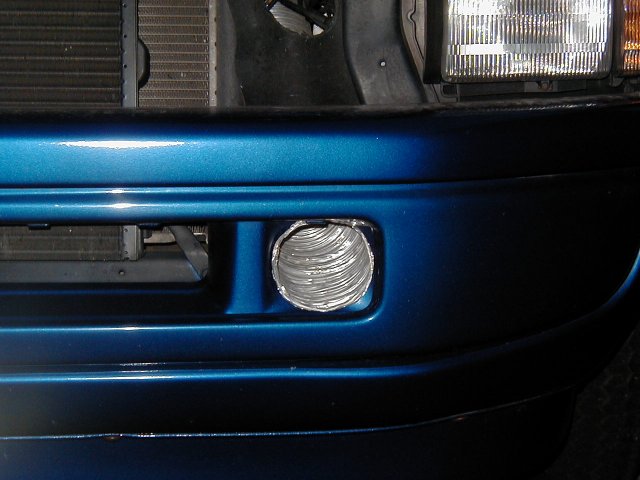

A bit of patience to get it threw this far but it holds tight at well over 100mph
Planned to paint them but still haven't got a round to it
At the link below, the 4th kit down lists the parts needed for a 5.2/5.9.. This is the only place you can order it from online as far as I know. I got my box and drop base from a speed shop up here (Ont/Cda) called Karbelt. Order the 14” round ½ drop base, the 3”110deg twin snorkel air box and the 14” lid if you don’t have one. All other parts can be bought from Home Depot and local auto parts store (K&N 14x3)
